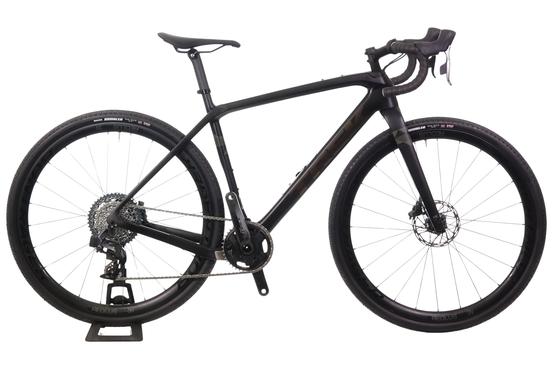

2024 Trek Checkpoint SLR 7 eTap

Frame & Ride Quality

• Built around Trek’s 700 Series OCLV carbon frame featuring the IsoSpeed decoupler, the Checkpoint SLR 7 smooths out harsh terrain without sacrificing pedaling efficiency

• Integrated downtube storage door offers accessible tool or snack storage, while internal routing and frame bag mount points enhance setup flexibility for bikepacking or all-day rides .

• Frame includes fender mounts, a T47 threaded bottom bracket, chain‑keeper, and thru‑axles (142×12 mm rear, 100×12 mm front), making it rugged and tour-ready .

⚙️ Component Spotlight

• SRAM Force XPLR eTap AXS wireless 12-speed drivetrain with up to 44T cassette delivers crisp shifting, while scribes up to 40T chainring including a built-in power meter on the crank .

• Hydraulic disc brakes—SRAM Force AXS—use 160 mm rotors and deliver reliable modulation in varied conditions.

• Bontrager Aeolus Pro 3V carbon wheelset, 25 mm internal, combined with Bontrager GR1 Team Issue 40 mm tubeless-ready tyres gives a balance of lightness, speed, and all-terrain traction .

🔧 Geometry & Fit

• Progressive, endurance-inspired geometry creates a ride that’s agile yet stable even at speed over rough terrain (71–72° head angle, ~73–74° seat angle, 435 mm chainstays across all sizes) .

• Available in six sizes (49–61 cm), suitable for riders roughly 155–198 cm (5′1″–6′6″), with increasing stack/reach values for taller frames

🧭 Ride Performance & Versatility

• Offers a snappy ride feel, with efficient power transfer for climbs and fast-paced gravel riding, yet cushioned by the IsoSpeed system for rougher sections
