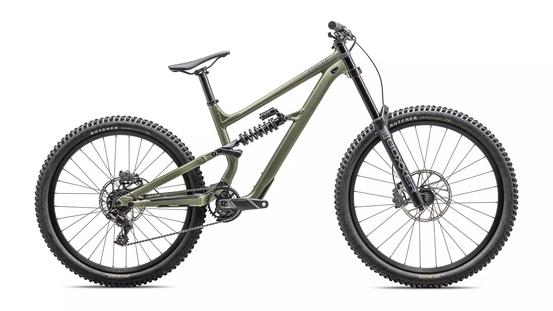

2025 Specialized Status 2 170 DH

2025 Specialized Status 2 170 DH

2025 Specialized Status 2 170 DH - satin-metallic-spruce-purple-haze, s3

2025 Specialized Status 2 170 DH

Whether you are on the trails, at the bike park, in the streets, or just cutting turns with your friends on a local hill, the STATUS 2 will allow you to ride your way.

BUILT BY RIDERS: Each build starts with a super strong M5 alloy chassis and tough alloy wheels. Stout suspension, powerful brakes, and popular drivetrain options round out these builds to catch big hits, pedal smooth, and provide a ton of stoppage. It’s not for the gram counter—it’s for those riders who push the boundaries of progression and come back for more.

RIDE DYNAMICS TUNED: Before showing up at your doorstep or local bike shop, each STATUS 2 gets a special shock tune from our Specialized Ride Dynamics team—a group that eats, sleeps, and breathes mountain bike suspension. The characteristics of the shock are designed to complement the kinematics of the new STATUS 2 perfectly.

LET’S GET PERSONAL: Each model of STATUS 2 features neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow the rider to finely tune the frame’s geometry to their desired ride or terrain. Bikes ship in the high position but can be ‘flipped’ to lower and slacker—8 mm lower bottom bracket and half a degree slacker head tube angle.

  • 100% Redesigned durable alloy chassis
  • New, more durable alloy rims
  • Horst Link geometry adjust flip chip
  • Updated geometry for more usability
  • Curated parts spec for your desired ride experience

Frameset
Frame
M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel
Seat Binder
Alloy, 38.6mm

Suspension
Rear Shock
RockShox Super Deluxe Select Coil, external rebound adjust, hydraulic bottom out, 230×62.5mm
Fork
RockShox BoXXer 29, Charger 3 RC damper, adjustable low-speed compression, adjustable rebound, 20x110mm thru-axle, 44mm offset, 180mm of travel

Brakes
Front Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm
Rear Brake
SRAM DB MVN BRZ SJ BDPA DIR

Drivetrain
Shift Levers
SRAM GX DH, trigger, 7-speed
Rear Derailleur
SRAM GX DH, 7-speed, trigger
Cassette
SRAM GX DH, 7-speed, 11-24t
Chain
SRAM PC1110 w/ Powerlink™
Crankset
SRAM DESCENDANT DH, DUB, alloy, Direct, 34T ring, 55mm chainline, 165mm
Bottom Bracket
SRAM DUB Threaded Wide

Wheels & Tyres
Rims
Roval Alloy DH, 28mm internal width, tubeless ready. Front: 29″, 28H, Rear: 27.5″, 32H
Front Hub
Alloy, sealed cartridge bearings, 20x110mm, 28h
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes
DT Swiss Industry
Front Tyre
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29×2.3″
Rear Tyre
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5×2.3″
Inner Tubes
Standard, Presta valve

Cockpit
Stem
Descendant 35mm Direct Mount Stem, 50mm length
Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S2: 780mm, S3-S5: 800mm
Grips
Deity Lockjaw
Saddle
Body Geometry Henge DH, hollow Cro-Mo rails, 130mm
SeatPost
Specialized 2-bolt head, forged alloy, 5mm offset, micro-adjust, 34.9mm

Product Details
Product ID
221356

Weight
Weight
17.18kg (37 lb, 14 oz)
Weight Size
S3
