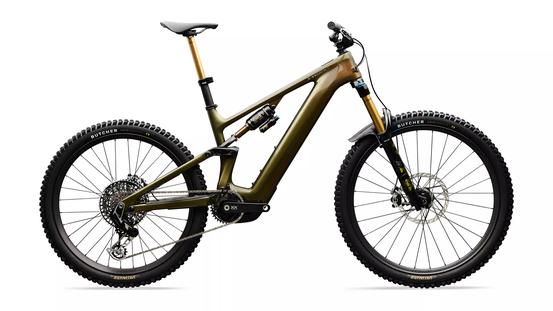

2026 Specialized S-Works Turbo Levo 4

2026 Specialized S-Works Turbo Levo 4

2026 Specialized S-Works Turbo Levo 4 - gloss-laurel-green-burnt-gold-chrome, s4

2026 Specialized S-Works Turbo Levo 4 – Laurel Green

Use
Full Power E-MTB Trail
E-System
S-Works 3.1 Motor w/ 720 Watts & 111 Nm, 840 Wh battery, up to 4.75 hour range
Frame
FACT 11m Carbon w/ Carbon Link, Geo Adj & SWAT Storage
Suspension
Front: 160mm FOX 38 FACTORY GRIPX2
Rear: 150mm GENIE – FOX FLOAT X Factory
Drivetrain
SRAM XX Eagle T-Type AXS
Wheels
Roval Traverse HD Carbon / DT 240 DEG

E-Bike
Motor
Specialized 3.1 S-Works motor, 111Nm power, 720W power
Battery
Specialized Turbo X2 840Wh integrated battery pack
UI/Remote
Mastermind TCU, 2.2″ high resolution screen, fully customizeable with Specialized app, works with Apple Find My
Charger
Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%

Frameset
Frame
Levo 4 frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length
Seat Binder
Alloy, 38.6mm

Suspension
Rear Shock
Fox Float X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm
Fork
FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset, 160mm of travel

Brakes
Front Brake
SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor
Rear Brake
SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor

Drivetrain
Shift Levers
SRAM AXS POD ULTIMATE with DISCRETE CLAMP
Rear Derailleur
SRAM XX Eagle Transmission Derailleur
Cassette
SRAM XS 1297 T-TYPE 10-52
Chain
SRAM XX, T-TYPE
Crankset
SRAM XX Carbon crank, 160mm, ISIS interface
Chainrings
SRAM 34t T-Type chainring, 104 BCD, steel

Wheels & Tyres
Front Tyre
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29×2.4″
Front Wheel
Roval Traverse HD carbon 29″, hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG Hub, 15x110mm, 32h
Rear Tyre
Butcher, GRID GRAVITY Casing, Gripton T9 compound, TLR, 27.5×2.4
Rear Wheel
Roval Traverse HD carbon 27.5″, hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG Hub, 12x148mm, 32h
Inner Tubes
Standard, Presta Valve

Cockpit
Stem
Industry 9 Mountain stem, 35mm clamp, 40mm length
Handlebars
Race Face Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise
Grips
Deity Lockjaw Grips
Saddle
Specialized S-Works Power Mirror, Ti Rails, 143mm/155mm
SeatPost
FOX Transfer NEO Factory, 34.9, S2: 125mm, S3: 175mm, S4-S6: 200mm

Accessories
SWAT
SWAT Internal downtube storage
