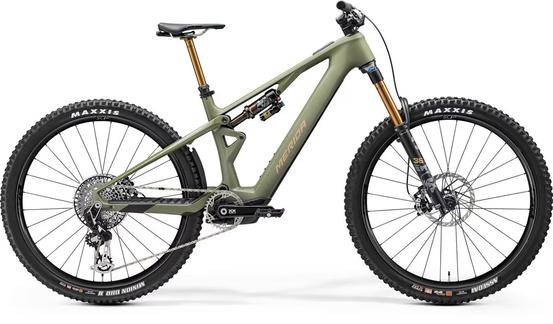

Merida eOne-Sixty SL 10K

Merida eOne-Sixty SL 10K

Merida eOne-Sixty SL 10K - Small

The Merida eOne-Sixty SL 10K Electric Enduro Bike is crafted for mountain bikers seeking top-tier performance and dependability on challenging terrains. It boasts a lightweight carbon frame and an advanced suspension system, ensuring excellent shock absorption and a smooth ride. This makes it perfect for aggressive trail riding and exciting descents.

Frame Material

Carbon

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Front Travel

160mm

E-Bike Specifications

Drive Type

Mid Drive

Motor Brand

Bosch

Motor

Bosch Performance Line SX 25KPH

Battery

Bosch CompactTube (CPT) ; 400Wh

Build

Frame

eONESIXTY SL CF4 I MAT carbon 160 STR 29x24 max WHS 148x12 AST fixed battery

Fork

Fox 36 Float Factory; Air, 160 STR; Tapered; 44mm fork offset; 29x2.6" max WHS

Shock

Fox Float X Factory

Handlebars

Race Face Era; 780 WHB

Headset

Acros ICR MERIDA INTEGRATED neck w/ Blocklock

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount

Pedals

VP VP-532

Saddle

PROXIM Nembo Triox; V-mount adapter; incl. MERIDA minitool

Seat Post

Fox Transfer Factory Series; 34,9 DSP; 0 SSB;

Wheels

Wheel Size

29"

Rims

DT Swiss HXC 1200; 110x15 WHF; 148x12 WHR; 30 IWR; 6-Bolt; SRAM XD; MAT carbon; Tubeless ready (tubeless tape and valves included)

Groupset

Crankset

Sram XX Eagle E-MTB Crank; 165 mm for all sizes

Chain

Sram XX Eagle Transmission; Flattop

Derailleur Rear

Sram XX Eagle Transmission AXS

Cassette

12 Speed

saddle Proxim Nembo Steel

approx. weight 23.7 kg

light front Lezyne Hecto StVZO E350+ Reverse



light rear USB REAR Light CG-214RG

max. weight 140 kg
